Stainless Threaded Inserts

(7 customer reviews)

$1.35

$1.15 per unit for buying at least 10

$1.00 per unit for buying at least 25

$0.93 per unit for buying at least 50

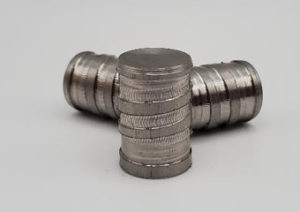

NEW ~ Stainless Steel Threaded Inserts made in Missouri

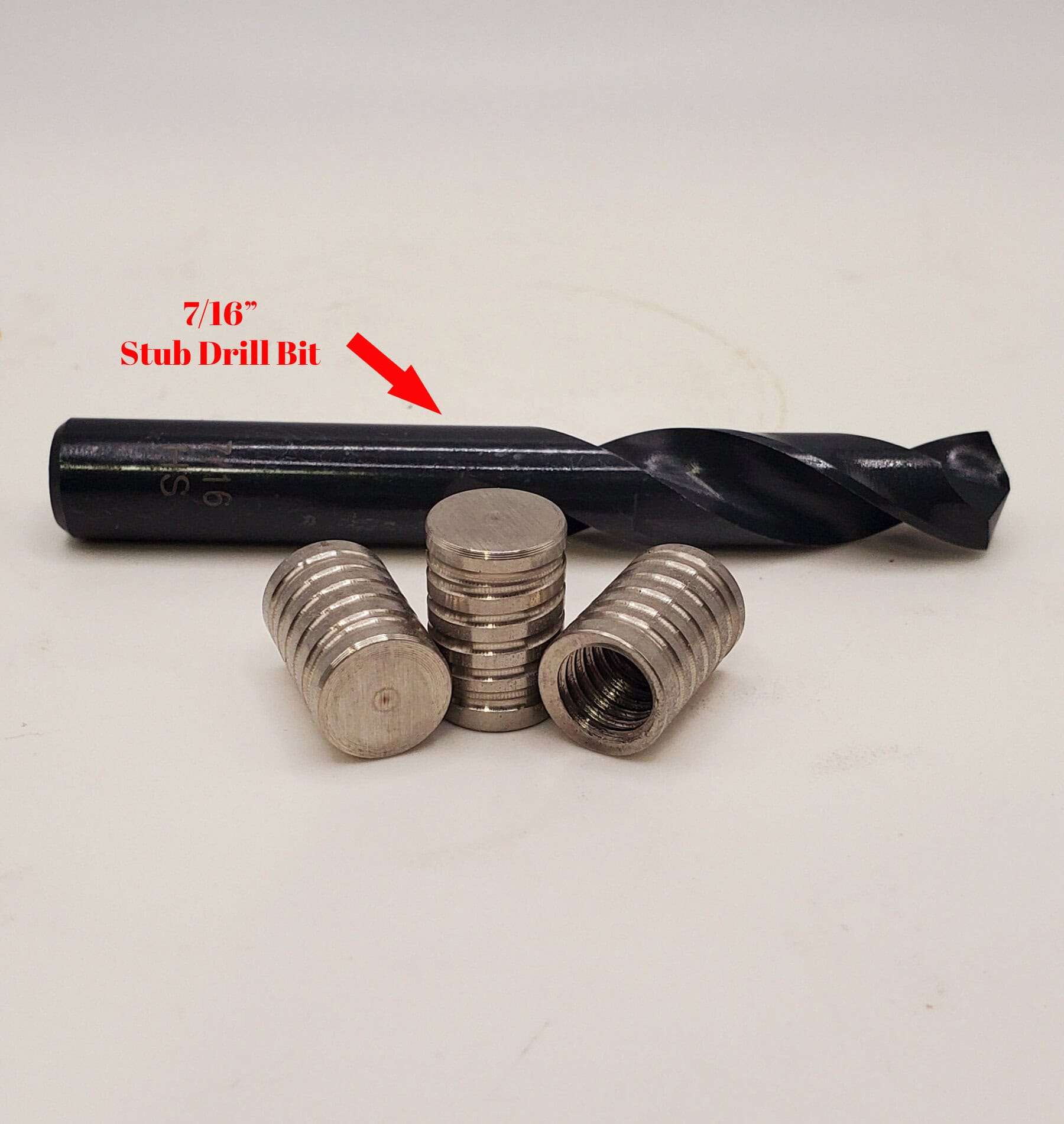

These can be used with all of these products; stoppers, openers, and can tab pulls.  This is an original design from our manufacturer, they have a cap on the top so you don’t have to worry about glue getting into the threaded area.  They are 5/8″ high with the 3/8″ x 16 tpi internal thread and use a 7/16″ drill bit.  Always drill the hole 1/4″ – 3/16″ deeper to allow for air compression when installing the insert.  The outer surface is rough and has ribs that will thread into the wood.   *note: these inserts need to be glued in to prevent them from getting loose if the wood moves, which all wood will do.

 This a jig James Olsen made to put the inserts into the wood.  It’s a piece of 3/8″x16tpi allthread, he ground off a few threads at the bottom for easier unthreading.  After he puts glue in the hole and a drop on the threaded insert, he “threads” the insert into the wood using this easy to make jig.

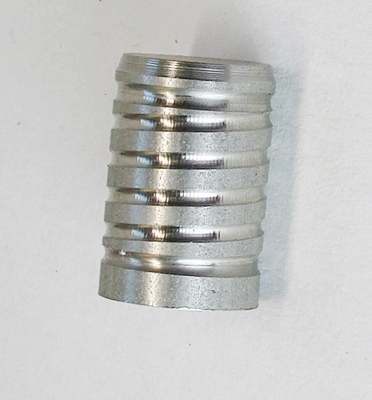

stainless 3/8" threaded insert
